MP10 – MP16 – MP20 – MP25
Description

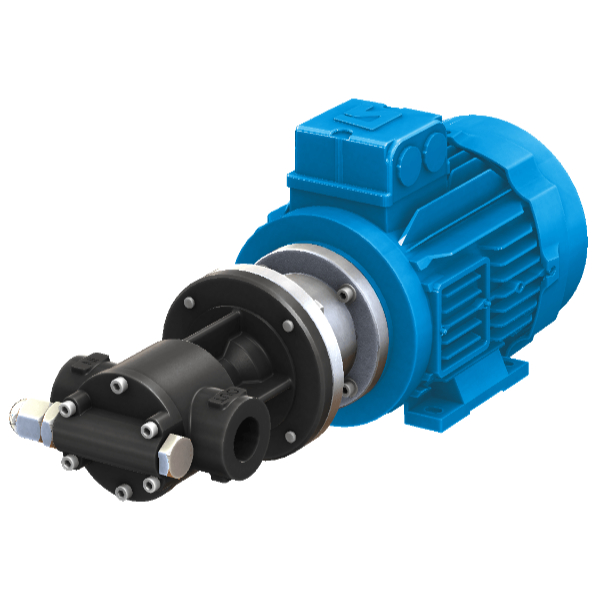

Pump MP10 – MP16 – MP20 – MP25
- The motor-pumps of the range MP10 to MP25 are suitable for pumping fluids having a lubricating propriety (oil, diesel oil, etc.).
- Their flow rates range is from 7 to 37 L / min, for a working pressure up to 10 bar.
- The Pollard “CMtec” technology guarantees good volumetric efficiency, good suction capacity and the ability to pump viscous fluids.
- These robust industrial pumps are designed to provide continuous service for many years.
- For any request, not included in the catalog, a feasibility analysis can be carried out by our design office on simple demand.
Also available with reverse system.
Additional information
| Flow Range | |
|---|---|
| Speed Rotation Range | |
| Fluid Viscosity Range | |
| Suction capacity (bar) | |
| Max. Operating Pressure | |
| Integrated Bypass | |
| Standard Setting of Bypass | |
| Standard Operating Temp | |
| Body and Stator Material | |
| Shaft Material | |
| Max-size-of-hard-particles | |
| Acoustic Pressure | |
| Seal Type |
Viscosity / Speed
| Viscosity (cSt) | Maximum speed (rpm) |
| Visc. < 1000 | 1500 |
| 1 000 < visc. < 3 000 | 1000 |
| 3 000 < visc. < 5 000 | 750 |
| 5 000 < visc. < 10 000 | 500 |
| visc. > 10 000 | 200 |
Flow Rate At 1500 RPM
| Ref. | |
| MP10 | 15 L/min |
| MP16 | 24 L/min |
| MP20 | 30 L/min |
| MP25 | 37 L/min |
